Reference

Configuration

Environment variables loaded from your private .env or host panel. Values below use visibly fake credentials only.

Required at startup: DISCORD_TOKEN, DISCORD_GUILD_ID, and RCON_PASSWORD. Missing required values raise Missing required environment variable: <NAME> and prevent the bot from starting.

Minimal .env

Start with the three required variables, then add status, chat, events, roles, and log settings as you enable those features.

.env · minimal required

# Minimal required settings — replace every value with your own private credentials.
# Never commit a filled .env file.
DISCORD_TOKEN=MTexample.fake.token.for.docs.only
DISCORD_GUILD_ID=123456789012345678
RCON_PASSWORD=replace-with-a-long-random-password

# Usually needed next for a usable install:
# MC_HOST=127.0.0.1
# MC_PORT=25565
# RCON_HOST=127.0.0.1
# RCON_PORT=25575
# STATUS_CHANNEL_ID=523456789012345678
# ADMIN_ROLE_ID=223456789012345678
# MOD_ROLE_ID=323456789012345678
# MEMBER_ROLE_ID=423456789012345678
# LOG_SOURCE=local
# MC_LOG_PATH=/path/to/logs/latest.log

Add Minecraft host/port and RCON host/port for a usable connection, then channel and role IDs for status, commands, and chat. When LOG_SOURCE=pterodactyl, set all three Pterodactyl variables together. See Troubleshooting for RCON, Message Content intent, PebbleHost log paths, and Pterodactyl auth failures.

Discord

Bind the bot to one Discord application and one guild.

DISCORD_TOKENRequired

Bot token from the Discord Developer Portal.

Default: None — startup fails if missing.
Example: DISCORD_TOKEN=MTexample.fake.token.for.docs.only

DISCORD_GUILD_IDRequired

Discord guild (server) ID this installation is bound to. Commands, chat bridge, and outbound channels are refused outside this guild.

Default: None — must be a positive integer.
Example: DISCORD_GUILD_ID=123456789012345678
Notes: Missing, blank, zero, or negative values prevent startup.

Roles

Optional role IDs for admin, mod, and member command tiers after the guild check.

ADMIN_ROLE_IDOptional

Role with admin-tier access (for example /sync).

Default: Unset — only the guild owner and Discord Administrators have admin access.
Example: ADMIN_ROLE_ID=223456789012345678

MOD_ROLE_IDOptional

Role with moderator-tier access (/say, /kick, /ban, /pardon, whitelist).

Default: Unset — admin-tier members still retain mod access.
Example: MOD_ROLE_ID=323456789012345678

MEMBER_ROLE_IDOptional

Role with member-tier access (/status, /list, Discord → Minecraft chat).

Default: Unset — privileged members and higher configured roles still qualify.
Example: MEMBER_ROLE_ID=423456789012345678

Channels

All channel IDs must belong to DISCORD_GUILD_ID. Chat and events do not fall back to the console channel.

STATUS_CHANNEL_IDOptional

Channel for the pinned auto-updating server-status embed.

Default: Unset — no pinned status embed loop destination.
Example: STATUS_CHANNEL_ID=523456789012345678

CONSOLE_CHANNEL_IDOptional

Staff-only destination for generic console output when console mirroring is enabled.

Default: Unset.
Example: CONSOLE_CHANNEL_ID=623456789012345678
Notes: Raw console lines can include player IPs, UUIDs, chat, and operational detail. Keep this channel trusted staff only.

ENABLE_CONSOLE_MIRROROptional

When true, mirror unclassified console lines to CONSOLE_CHANNEL_ID.

Default: false
Example: ENABLE_CONSOLE_MIRROR=false
Notes: Accepted truthy tokens: 1, true, yes, on. Falsy: 0, false, no, off.

CHAT_CHANNEL_IDOptional

Bidirectional chat bridge channel for Minecraft ↔ Discord messages.

Default: Unset — chat bridge disabled; Message Content intent not required.
Example: CHAT_CHANNEL_ID=723456789012345678
Notes: When set, enable Message Content Intent in the Developer Portal. Discord → Minecraft senders need configured-guild owner, Discord Administrator, or a configured admin/mod/member role.

EVENTS_CHANNEL_IDOptional

Channel for join, leave, death, and advancement/challenge/goal embeds.

Default: Unset — those events are dropped (no console fallback).
Example: EVENTS_CHANNEL_ID=823456789012345678

Chat bridge intent checklist: Message Content intent.

Console mirror in practice

With ENABLE_CONSOLE_MIRROR=true, console lines that are not chat or events are posted to CONSOLE_CHANNEL_ID as code blocks: RCON connections, whitelist and game mode changes, logins, disconnects, and world saves. These lines include player UUIDs and IP addresses, so keep the channel staff-only.

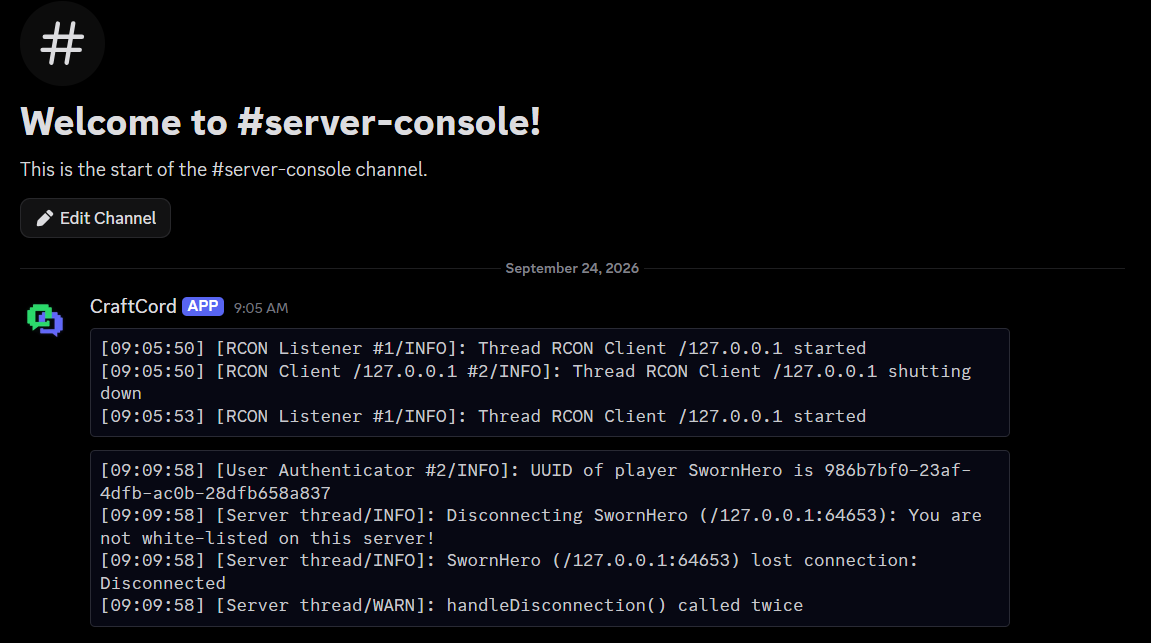

Discord #server-console channel with mirrored Minecraft console lines: RCON client threads starting and a player being disconnected for not being on the whitelist. — Live capture · RCON connections and a whitelist rejection

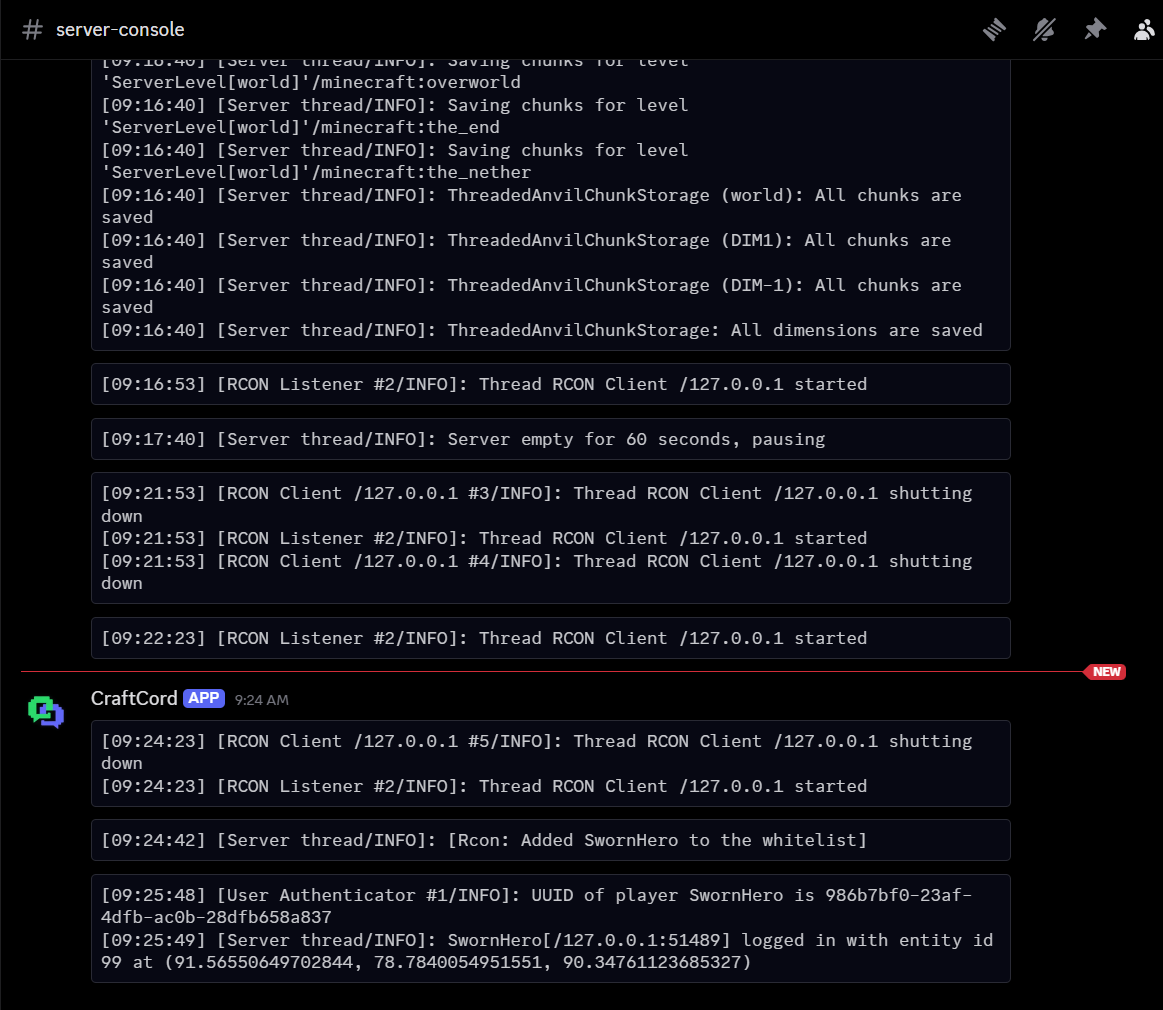

Discord #server-console channel showing world save lines, RCON threads, “Added SwornHero to the whitelist”, and the player logging in. — Live capture · world save, whitelist add, and login

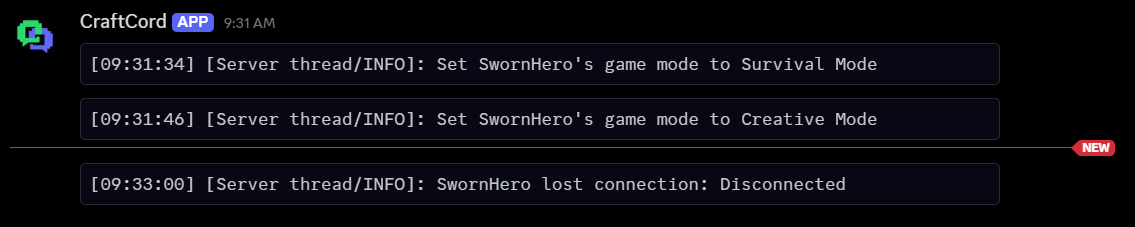

Discord #server-console channel showing game mode changes to Survival and Creative, then the player losing connection. — Live capture · game mode changes and a disconnect

Minecraft / RCON

One Minecraft Java server per CraftCord installation. Status ping and RCON can use different host values when needed.

MC_HOSTOptional

Server-list ping target host. Never shown on the status embed.

Default: 127.0.0.1 when the variable is absent from the environment.
Example: MC_HOST=127.0.0.1
Notes: A blank MC_HOST= in .env stays empty rather than applying the default.

MC_PORTOptional

Server-list ping port.

Default: 25565
Example: MC_PORT=25565

PUBLIC_ADDRESSOptional

Cosmetic address shown in /status and the pinned embed when set.

Default: Unset — Address field omitted.
Example: PUBLIC_ADDRESS=play.example.com

RCON_HOSTOptional

RCON host for the configured Minecraft server.

Default: 127.0.0.1 when the variable is absent from the environment.
Example: RCON_HOST=127.0.0.1
Notes: A blank RCON_HOST= in .env stays empty rather than applying the default.

RCON_PORTOptional

RCON port matching server.properties.

Default: 25575
Example: RCON_PORT=25575

RCON_PASSWORDRequired

RCON password matching server.properties.

Default: None — startup fails if missing.
Example: RCON_PASSWORD=replace-with-a-long-random-password
Notes: Also set enable-rcon=true on the Minecraft server and restart it after changing RCON settings. Keep RCON off the public internet.

If the bot logs RCON unreachable: configured Minecraft server, follow RCON troubleshooting.

Log ingestion

Minecraft → Discord chat and events need a log source. Choose local file tailing or a Pterodactyl panel WebSocket.

LOG_SOURCEOptional

Log backend: local or pterodactyl.

Default: local
Example: LOG_SOURCE=local

MC_LOG_PATHConditionally required

Absolute path to latest.log when LOG_SOURCE=local.

Default: Unset — local log mirroring disabled.
Example: MC_LOG_PATH=/home/container/logs/latest.log
Notes: On PebbleHost Minecraft hosts this path is typically /home/container/logs/latest.log. Required for local chat and event routing.

PTERODACTYL_PANEL_URLConditionally required

Panel base URL with no trailing slash when LOG_SOURCE=pterodactyl.

Default: Unset.
Example: PTERODACTYL_PANEL_URL=https://panel.example.com
Notes: For PebbleHost the README documents https://panel.pebblehost.com.

PTERODACTYL_SERVER_IDConditionally required

Server identifier from the panel URL when LOG_SOURCE=pterodactyl.

Default: Unset.
Example: PTERODACTYL_SERVER_ID=abcd1234

PTERODACTYL_API_KEYConditionally required

Client API key from the panel Account → API Credentials page.

Default: Unset.
Example: PTERODACTYL_API_KEY=ptlc_example_not_a_real_key
Notes: Invalid credentials log one authentication error and disable log mirroring until restart or credential fix. All three Pterodactyl variables must be set together.

Host-specific help: PebbleHost MC_LOG_PATH and Pterodactyl authentication.

Behaviour tweaks

Optional refresh and persistence settings.

STATUS_UPDATE_INTERVALOptional

Seconds between status embed refreshes.

Default: 30 (values under 10 are raised to 10)
Example: STATUS_UPDATE_INTERVAL=30

DATABASE_PATHOptional

SQLite file for the pinned status message id and reachability-based online_since timestamp.

Default: data/bot.db
Example: DATABASE_PATH=data/bot.db

Secondary reference: GitHub README.
